REVIEW ARTICLE


Plant Feedstocks and their Biogas Production Potentials



Ganna I. Kulichkova1, , Tetiana S. Ivanova1, *, , Mihael Köttner2, Oleksiy I. Volodko1, Svitlana I. Spivak1, Sergiy P. Tsygankov1, Yaroslav B. Blume1
1 Institute of Food Biotechnology and Genomics, National Academy of Sciences of Ukraine, Osypovskoho, Ukraine
2 International Biogas and Bioenergy Centre of Competence Fachgruppe Biogas GmbH, Feuersee, Kirchberg/Jagst, Germany


Article Metrics

CrossRef Citations:
22
Total Statistics:

Full-Text HTML Views: 10566
Abstract HTML Views: 1939
PDF Downloads: 1517
Total Views/Downloads: 14022
Unique Statistics:

Full-Text HTML Views: 5408
Abstract HTML Views: 880
PDF Downloads: 1034
Total Views/Downloads: 7322



Creative Commons License
© 2020 Kulichkova et al.

open-access license: This is an open access article distributed under the terms of the Creative Commons Attribution 4.0 International Public License (CC-BY 4.0), a copy of which is available at: https://creativecommons.org/licenses/by/4.0/legalcode. This license permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

* Address correspondence to this author at the Institute of Food Biotechnology and Genomics, National Academy of Sciences of Ukraine, Osypovskoho str., 2a, Kyiv, 04123, Ukraine; Tel/Fax: +38 044 462 72 58; E-mail: ivteihbg@gmail.com Contributed equally


Abstract

Introduction:

Nowadays, organic waste utilization and replacement of fossil energy sources with their renewable alternatives pose a challenging problem both for industrially developed and developing countries. Anaerobic digestion of organic biomass into biogas is considered an efficient technology for bioenergy production. Over the period from 2009 to 2018, the global biogas production capacities have more than doubled and are continuing to grow. The composition and the amount of biogas depend strongly on the type of the substrate. Various types of feedstock can be used for the production of biogas such as animal wastes, agricultural residues, and dedicated energy crops.

Objective:

To review biogas production potentials of energy crops and plant processing raw materials.

Results:

In the background of historical development and present state, the paper reviews the potential of different plant raw materials to be utilized for biogas production purposes. The potential of energy crops, agricultural residues, and wastes for biogas production is analyzed. International projects concerning energy crops grown on marginal lands are presented and commented on in the article. The approach of implementing crop rotation systems for industrial energy crop cultivation is described and recommended as beneficial for various purposes. The anaerobic degradability of biomass constituents, optimal process parameters, and biomass treatment for biogas production are discussed. C/N ration and lignocelluloses content in the substrate are considered among the most decisive parameters for AD and methane production. Various concepts of biogas bioreactor technologies have been studied depending on the substrate type.

Conclusion:

Plant feedstock may play a decisive role in biogas production as a renewable energy source. To avoid GHG release into the atmosphere, biogas facilities should be built within the closest vicinities to the places of existing garbage dumps, and waste management practice involving organic fraction separation in households and in the industry should be applied. Construction of biogas facilities is beneficial for environmental, economic, and social reasons.

Keywords: Biogas, Anaerobic digestion, Agricultural feedstock, Plant raw materials, Energy crops, Agricultural residues, Pretreatment, Methane yield.



1. INTRODUCTION

The human population on the Earth is steadily growing which leads to the increase in food and energy demands and aggravates the environmental challenges. Replacing fossil fuels with renewable energy alternatives has become a major global issue of the XXI century and a key to sustainable development [1]. Biogas is a form of renewable fuel and an energy source, it is a combustible gas mixture produced during anaerobic fermentation of biomass by bacteria [2]. Successful implementation of biogas technologies transforms costly, environmentally damaging and socially sensitive issues of fossil fuel dependence, environmental pollution, Greenhouse Gas (GHG) emissions and waste utilization into a profitable solution producing electricity, heat and biofertilizers. The biogas technology can also produce a vehicle fuel and substitute fossil gas when upgraded to methane [3, 4]. Development of a national biogas production sector can significantly contribute to the establishment of new enterprises, bring more income to rural areas, create new jobs and improve living standards [5].

Methane fermentation is well known to occur in nature, for instance, in the process of organic matter decay in an oxygen-deprived environment such as landfill wastes and swamps [1, 4, 6]. Raw biogas consists mainly of 50–75% methane (CH4), 25-50% carbon dioxide (CO2); the rest is composed of water vapor (H2O) and traces of oxygen (O2), nitrogen (N2), and hydrogen sulfide (H2S) [7]. Biogas containing 55% CH4 has a calorific value of 21.5 MJ/Nm3, while pure CH4 has a calorific value of 35.8 MJ/Nm3, therefore this is the reason to remove CO2 from raw biogas [2]. To prevent methane release into the atmosphere, the biogas collecting facilities should be located in the closest possible vicinity to the existing garbage dumps. Waste management involving organic fraction separation in households and in the industry should be applied [8, 9].

From the historical perspective, ancient Persians observed that rotting vegetables release flammable gas [10]. Marco Polo reported that sealed sewage tanks, made for biogas collection two-three thousand years ago, were mentioned in ancient Chinese literature [10, 11]. The development of anaerobic digestion (AD) technology was pioneered in 1859 in Bombay as a wastewater treatment installation [10]. Using the septic tank, that had been invented by Mouras and improved by Cameron, the government of Exeter in England endorsed in 1897 the treatment of the entire city’s wastewater for heating and lighting purposes [6]. In the 1930s, the initial ideas were further developed in the USA to utilize cellulose-rich waste for biogas production. At that time, methane production from farm manure was implemented in India, and wealthy families built some rural biogas plants in China [11]. The first agricultural biogas plants in European colonies were constructed in Algeria, and after World War II that experience was implemented in southern France and Italy [11]. The application of AD systems was stimulated in the early 1970s by a steep rise in fossil fuel prices and by the increasingly stringent pollution control regulations [6]. Nowadays, the AD technology that allows the generation of renewable energy while treating biodegradable waste and mitigating GHG emissions is becoming an even more topical and important issue [12].

According to the International Renewable Energy Agency [13], from 2009 to 2018, the biogas production has more than doubled in the world, starting from 8 280 MW in net electricity generating capacities and increasing to 18 126 MW. The European countries account for 70-74% of the world biogas capacities with the leading country Germany (50-53% from the total European biogas capacities, 6 583 MW in 2018). The USA is the second-largest biogas manufacturer in the world after Germany producing 2 384 MW in 2018 but driving up not as fast as Germany. Italy is the second country in Europe and the third in the world with 1 432 MW of biogas capacity in 2018; it increased biogas net generating capacity four times compared to the level in 2009. The Asian countries have built lots of micro biogas plants, and the leaders in the number of country biogas plants in the world are China, India, and Nepal with 12 mln, 3.7 mln, and 140 thousand biogas operating facilities, respectively [14].

The biogas potential and its composition are largely determined by the source [1]. Biogas is a product of biomass (a biological material available on a renewable basis) fermentation that generally includes organic wastes, plant residues and dedicated energy crops (DEC) [15]. The organic wastes suitable for biogas production include animal waste such as dairy manure and poultry litter, municipal solid waste, wastewaters and sludge, industrial waste, such as food processing waste, is also suitable for the purpose. Biogas production from waste materials is consistent with a closed-loop circular economy concept which aims at reducing both virgin material inputs and waste outputs [8] and the “Waste-to-Energy” trend [1].

Agricultural (or crop) residues are the non-edible portion of plants that remain on the fields following harvesting and which are distinguished from other biomass resources (e.g., DEC) as they are not in most cases produced specifically for energy purposes [15]. Reuse of plant residues is a cheap source of biomass and is more benign since landfill sites will inevitably generate methane and other gaseous emissions that increase the environmental burden [16].

Energy crops are specifically cultivated for fuel and are therefore designed to maximize energy yields per hectare at the lowest possible costs [16]. At present, biogas production is becoming more controversial where arable land is taken up with large scale cultivation of energy crops or where feedstock has to be transported over a long distance to reach a production facility [17]. At the same time, obtaining biogas from DEC can also be beneficial, particularly where a limited proportion of energy crops can be supplemented with organic waste and thus enhance the production process [17]. Besides, the cultivation of industrial DEC on marginal, degraded or abandoned land can be considered as a compromise way to minimize land-use competition with food crops [18-20].

Although the AD process is a widely implemented technology with several thousand full-scale plants in operation, there are still significant research gaps concerning process control and integration, process stability, microbiome and environmental analyses [12]. To realize the potential of the AD technology for energy, biochemical production and environmental protection, a comprehensive analysis needs to be conducted with various available feedstocks [12]. The objective of the current article is to review biogas production concerning energy crops and plant processing raw materials.

2. PLANT FEEDSTOCKS

In European countries, up to 70% of the feedstock used for biogas production comes from the agricultural sector such as DEC, manure and agricultural residues [21]. According to the European Biogas Association (Fig. 1), DEC constitute 50 or more percent as a substrate for biogas production in Austria, Cyprus, Germany, and Latvia; for comparison, agricultural residues account for 40-60% in biogas generation in Cyprus, Germany, Denmark, France, Italy and Poland among the 16 countries analysed.

Fig. (1). Feedstock use for biogas production in European Countries (excluding landfill), expressed as a mass percentage [21].

The Green Gas Grids project, which ran from 2012 to 2014, was funded by the Intelligent Energy Europe programme, forecast a maximum technical biogas production in the EU-28 in the range of 150 to 250 billion cubic meters (Bcm) per year in natural gas equivalent terms, comprising around 100 Bcm from residues, and 50-150 Bcm/year from energy crops [17].

2.1. Energy Crops

Energy crops can be herbaceous as grass, maize (Zea mays L.), raps (Brássica nápus L.) or woody like willow (Salix), poplar (Populus), oak (Quercus), although the woody crops need special delignification pretreatment before AD [5]. The high content of lignin is not degradable in AD and makes the woody substrates more suitable for gasification or incineration or for the composting process as a bulking agent instead of biogas production [22]. Herbaceous energy crops have several essential characteristics that make them suitable for AD: efficient solar energy conversion resulting in high yields, low agrochemical inputs, low nutrient and water requirement due to their extensive rooting system, which holds onto fertilizers and water, and low moisture levels at harvest [15]. Plants with perennial growth habits also have the benefits of low establishment costs and fewer annual operations [15]. Using crops producing large biomass yields and/or growing fast crops that can provide high biogas output as a feedstock source makes biogas production cost-effective and profitable [23].

Key determining factors for a maximum biogas yield are the following: species and variety of energy crops, time of harvesting, mode of conservation and pretreatment of the biomass prior to the digestion process and nutrient composition [24]. Clearly, DEC which are more suitable for cultivation in one country might be less suitable for the other country [25]. To enhance the biogas production process from agricultural residues, manure and organic waste, energy crops such as maize, triticale (× Triticosecale) and sweet sorghum (Sorghum bicolor L. Moench) are often used [26].

To date, maize is the dominant substrate among energy crops for biogas production [25, 27-32] because it is assumed to possess the combination of high biomass (9-30 tons dry matter (DM) per hectare) and methane yields [24, 28, 29, 33-35]. Meanwhile, methane yield depends not only on the kind of crop and the genotype but also on biomass treatment [32, 36]. Some research investigations, presented in Table 1, found no differences in methane content between maize and barley (Hordeum vulgare L.), rye (Secale cereale L.), triticale [32] and several other energy crops [29, 31, 32, 34].

Table 1. Methane yield (m3 per tonne volatile solids (VS) added).
Maize (whole crop) 205 – 450 Barley 353 – 658
Wheat (grain) 384 – 426 Triticale 337 – 555
Oats (grain) 250 – 295 Sorghum 207 – 387
Rye (grain) 283 – 492 Peas 390
Grass 298 – 467 Alfalfa 340 – 500
Clover grass 290 – 390 Sudan grass 213 – 303
Red clover 300 – 350 Reed Canary Grass 340 – 430
Clover 345 – 350 Ryegrass 390 – 410
Hemp 355 – 409 Nettle 120 – 420
Flax 212 Miscanthus 179 – 218
Sunflower 154 – 400 Rhubarb 320 – 490
Oilseed rape 240 – 340 Turnip 314
Jerusalem artichoke 300 – 370 Kale 240 – 334
Potatoes 276 – 400 Chaff 270 – 316
Sugar beet 236 – 381 Straw 242 – 324
Fodder beet 420 – 500 Leaves 417 – 453

Maize is considered to be one of the three major cereal-based calorie sources for food supply, along with wheat and rice [37], which brings controversy over the concurrent use of the crop for food or fuel. It is important to note that maize monocultures may facilitate soil erosion [38], nitrate leaching [39], cause negative long-term effects on soil organic matter and reduction of biodiversity [28]. Maize is also sensitive to water deficit and other environmental stresses abound flowering [40]. In Germany, maize-specific pests Diabrotica virgifera subsp. virgifera has become increasingly important [41] and encourages investigations of other energy crops for biogas production [28].

Concerning DEC, recent EU projects, such as presented in Table 2, and extensive scientific evidence suggest that ‘second-generation’ lignocellulosic feedstock production systems (e.g., switchgrass (Panicum virgatum L.), miscanthus (Miscanthus × giganteus J.M.Greef & Deuter), cardoon (Cynara cardunculus L. var. altilis), giant reed (Arundo donax L.), and removal of crop residues) are amongst the most promising candidates to be grown on less favourable agricultural lands [23, 42-45]. For example, it was shown [23] that the use of alternative energy crop A. donax comparing to maize silage decreased climate change impact because of high biomass productivity per specific area and inputs, low agronomic inputs necessary (operation, fuel, chemicals) to produce the biomass and reduced need of N and P allowing better nutrient management.

In the framework of the MAGIC project Table 2, the concept of marginal agricultural land low-input systems for industrial crop cultivation was introduced [46] as sets of agricultural low-input practices to form viable cropping systems on marginal agricultural lands under specific climatic conditions. Additionally, Horizon2020 project BIOPLAT-EU aims at promoting and supporting the uptake of sustainable bioenergy projects on marginal, underutilized and contaminated lands, and for this purpose, the project is producing a tool and a database of maps through a web-based platform [47].

Ukraine is a large country in Central and Eastern Europe with a territory of 60.4 mln ha 70% of which is agricultural lands [48]. As estimated in the international project FORBIO Table 2, 4 mln ha in Ukraine have been set-aside and can be used for DEC cultivation [49]. As long as the war in the Eastern part of Ukraine is making a badly detrimental impact on land and water resources, the study supported by NATO Science for Peace and Security Program [50] shows a good potential of Miscanthus x giganteus phytomanagement on metal (loid)-polluted military soils in Ukraine and Slovakia. Furthermore, the data [51] indicates that Miscanthus × giganteus could improve the composition and structure of marginal lands as it leads to an increase in soil organic content, reduces the bulk density, improves the microbial activity and soil porosity. Several EU projects such as MISCOMAR and MisChar also focus on Miscanthus biomass options for contaminated and marginal land.

Table 2. Some international projects concerning energy crops.
Abbreviation Description and Website Duration Consortium Funding
BEE Biomass energy Europe
http://www.eu-bee.eu/
03/2008-11/2010 16 partners from Austria, Croatia, Finland, Germany, Greece, The Netherlands, North Macedonia, Poland, Sweden, Ukraine EU research funding 2007-2013 7th framework programme (FP7)
Overall budget:
€ 2 820 807
OPTIMA Optimization of perennial grasses for biomass production
http://www.optimafp7.eu/
10/2011 – 09/2015 21 partner from Belgium, Germany, Greece, Hungary, Ireland, Italy, The Netherlands, Portugal, Spain, The United Kingdom, and SICA members (Argentina, China, India) EU research funding FP7 + Central American Integration System (SICA)
Overall budget:
€ 3 913 249,84
WATBIO Developing drought-tolerant biomass crops for Europe (poplar, miscanthus and Arundo donax L.)
http://www.watbio.eu/
11/2012-10/2017 22 partners from France, Germany, Greece, Italy, The Netherlands, Spain, Sweden, The United Kingdom EU research funding FP7-KBBE (knowledge-based bio-economy)
Overall budget:
€ 11 660 401,40
FORBIO Sustainable bioenergy production potential on available underutilized lands in Europe
https://forbio-project.eu/
01/2016 -12/2018 12 partners from Belgium, Germany, Hungary, Italy, Ireland, Poland, Romania, Ukraine, The United Kingdom EU programme Horizon2020
€ 1 941 581
SEEMLA Sustainable exploitation of biomass for bioenergy from marginal lands
http://seemla.eu/
01/2016 -12/2018 8 partners from Germany, Greece, Italy, Ukraine EU programme Horizon2020
€ 1 629 884
MAGIC Marginal lands for growing industrial crops
http://magic-h2020.eu/
07/2017-06/2021 26 partners from Austria, France, Germany, Greece, Italy, Latvia, The Netherlands, Poland, The Portugal, Spain, Ukraine, The United Kingdom EU programme Horizon2020
€ 5 999 987,50
New-C-Land Developing marginal land by producing plant biomass used for energy and materials
https://www.newcland.eu/
01/2018-12/2021 9 partners from Belgium and France Interreg France-Wallonie-Vlaanderen, co-financed by the European Regional Development Fund
Overall budget:
€ 1 915 532

In many countries in sub-Saharan Africa, connecting the national electricity grid is highly expensive because their populated regions are spread over vast areas. In this context, decentralized renewable energy production from DEC cultivated on marginal lands offer an attractive solution [52]. The Crassulacean acid metabolism is a photosynthetic adaptation that facilitates carbon dioxide uptake at night and allows prickly pear (Opuntia ficus-indica (L.) Mill.) from Cactaceae family and African milkbush (Euphorbia tirucalli L.) to grow under arid and semi-arid climates and produce biomass for methane yield of 1860 m3 and 1791 m3 per 1 ha of marginal land respectively [52].

Another approach in sustainable energy crop cultivation is the development of integrated crop rotation that offers the supply with food and feed, the production of raw materials and energy sources such as biogas and the maintenance and further promotion of a multifaceted arable landscape [24]. For the development of sustainable crop rotation, experiments [24] elucidated optimum time of harvesting and methane yield in the cultivation of maize, winter wheat, triticale, winter rye, sunflower and grasses varieties. The highest methane yields of 7500-10200 m3N ha-1 were achieved from maize varieties, and the other crops resulted in 2-4 lower methane yields.

In an integrated crop rotation systems catch crops are plants that have short growth periods and can be cultivated between the vegetation periods of the main crops, thus increasing the efficiency of cultivation with regard to limited water and land resources. In this way, summer catch crops in Europe grow from June to October, and winter ones - from October to April [31]. Sorghum is a fast-growing crop with a shorter growth period compared to maize. It is characterized by wide adaptability to different environmental conditions and can be used as a summer crop [31, 40]. Sorghum is drought resistant due to the ability to delay reproductive development and a dense and prolific root system that is capable of extracting soil water deep in the soil profile, the ability to maintain stomatal opening at low levels of leaf water potential through osmotic adjustment [40, 53, 54].

The extensive study [26] was dedicated to energy crop combinations to produce biomass for biogas in reduced territories using double-cropping systems comparing to single crop: varieties of triticale, rye, and grass species as autumn-winter crops as well as varieties of sorghum and maize hybrids as spring-summer crops. In the single crop test, the fresh matter production per hectare was the highest in the case of sorghum (122.5 ± 10 Mg ha-1) owing to double harvest, but in DM yield context, the most efficient were maize and sorghum (17.6-21.5 Mg DM ha-1). Crop successions increased fresh and DM production from the territory as well as the biogas yield. Maize by itself resulted in up to 12 969 ± 812 Nm3 ha-1 biogas, and the most productive combination was triticale + maize with 18 737 ± 2357 Nm3 ha-1 of biogas. The biomass and biogas outputs in the research performed in Italy [26] were 15-20% higher in comparison to other reports from Austria [24], Germany [27], and Finland [25] due to the soil fertility and climate conditions.

Thereby, the cultivation of DEC brought new farming practices and new crop rotation systems, where intercropping and combined crop cultivation are the subjects of intensive research [5]. Further research is however required to ensure that the land-use change implications are well understood and the cultivation of energy crops is not detrimental to other land use or associated water resources, particularly for food production [17].

2.2. Agricultural Residues

Agricultural crop residues are one of the main concerns of the farming industry and are known to be significant contributors to GHG generation [55]. According to the definitions [48], primary agricultural residues are materials which remain in fields as by-products after the primary product of crops has been harvested (include cereal grain straws, wheat (Triticum), barley, rice (Oryza), corn stovers, stalks, leaves, etc.); and secondary agricultural residues arise during the processing of agricultural products for food or feed production (such as bagasse, sunflower husks, nutshells and so on). When using agricultural residues for biogas production, two sustainability issues should be considered: the potential competition with feeding in animal husbandry and possible depletion of organic matter in the soil and nutrients in agricultural lands because of the removal of straw from fields [48].

Some lignocellulose biomass has high lignin content which results in a slow and incomplete anaerobic fermentation [30, 55]. Plant materials may also contain a high percentage of carbon so the C/N ratio is too high [6]. In such cases, co-digestion with other substrates is more preferable than mono-digestion [6, 55]. On the other hand, the high content of water and the high fraction of fibers in manure cause low biogas yield typically ranging from 10 to 20 m3/t whereas the operation is considered profitable when biogas yields higher than 30 m3/t of treated material are achieved [56, 57]. To increase the biogas yield, a co-digestion with crop residues can be introduced. Thus, the addition of 4.6 kg of wheat straw (240 m3 CH4 per 1 t straw) to 1 t of swine manure resulted in a 10% methane production increase [57]. Biogas and methane potentials of some plant residues are comparable to energy crops on a dry weight basis (Table 3).

Table 3. Biogas potential of plant residues compared to maize, grass, and oats, at 35 °C [6].
Biodegradable solid waste Biogas obtainable on batch digestion (L kg−1, dry weight) Methane
in biogas, %
Banana (fruit and stem) 940 53
Potato (tuber) 880 54
Sugar beet (root) 620 65
Sugar beet (leaves) 380 66
Grass 450–530 55–57
Maize (whole plant) 350–500 50
Oats (whole plant) 450–480 51–55
Hay 350–460 54–65
Straw (ground) 350–450 54–58
Straw (chapped) 250–350 58
Water hyacinth 400–420 56
Salvinia 430–480 58

2.3. Wastes

A rapid increase in the global population is leading to an increased demand for living resources such as food, feed, and fuel and, at the same time, to the generation of a large amount of wastes [58]. Improper management of organic waste can act as a major contributor to multifold environmental problems, such as climate change, ecosystem damage and resource depletion [59].

2.3.1. Food Waste

Approximately, one-third of all food produced for human consumption worldwide is discarded as waste, representing about 1.3 billion tons of waste per year [58]. It was elucidated [60] that AD of wastes prevents the spread of pathogens and environmental degradation caused by the wastes when those are allowed to runoff water basins and drain into the oceans. A few examples are provided here which illustrate the potential of biogas technology implemented in the treatment of plant processing food waste.

A coastal city of Turkey Giresun manufactures about 13.54% of world hazelnut (Corylus) turnover but pours organic wastes of this production into the sea [61]. It was evaluated at Giresun University [61] that the annual biogas production potential of Giresun city in anaerobic fermentation of hazelnut shells and wastes is 38.21 GWh.

AD has been found to be a better option than thermal technologies for bakery such as waste bread, biscuits, donuts, pizza dough waste, etc [62]. Bakery waste is an unsold and off-test food of cereal origin undergone inspection for visible mold, bacterial infection, and contaminations [63] though it stores mold when accumulated and not utilized [64]. The literature review indicated [62] that bakery waste produced 45-61% methane at 20-40 °C, in pH range from 5.3 to 7.4, with retention time from 12 to 55 days. Bakery waste contains easily degradable carbohydrates, enriched in vitamins [63] and can be considered a good co-substrate for fruit, vegetable and agricultural waste as it increases methane production [62].

2.3.2. Industrial Wastewaters

Implementation of anaerobic technologies in the world started with wastewater treatment [10, 11]. Industrial wastewater is one of the major sources of aquatic pollution which could significantly endanger surrounding environments and ecosystems [65]. AD has several advantages compared to aerobic wastewater treatment including the production of renewable energy, mainly in a form of biogas, substantially lower energy requirement, and less sludge to dispose of [65].

Among liquid wastes of plant feedstock processing, the potential of brewery wastewater [66-70], cassava (Mánihot esculénta Crantz) starch wastewater [71-74], palm oil mill effluent [75-83], biodiesel wastewater [84-87], and bioethanol wastewater (vinasse) [88-102] have attracted a lot of attention [65].

Vinasse (sugar beet (Beta vulgaris L.) of sugarcane (Saccharum) molasses stillage), a brown liquid with an unpleasant odour, is the main residue of alcohol production and is generated in distillation step in volumes between 8 and 15 liters per liter of ethanol obtained [65, 88, 95]. According to the State Statistics Service of Ukraine, in 2018, 333 850 tons of beet vinasse was poured on the fields of filtration in Ukraine polluting air and land, which resulted in growing CO2 emissions and deteriorating people’s living conditions. The beet vinasse characteristics are shown in Table 4.

Table 4. Sugar beet vinasse chemical composition and parameters [90].
Parameters* Value Macroelements** Value Microelements** Value
DM, g kg-1 600-808 Ca, g 100 g-1 0.04 Al, mg kg-1 0.21
VS, g kg-1 408-598 K, g 100 g-1 1.12 As, mg kg-1 <0.1
Total ammoniacal nitrogen, g l-1 1-6 Mg, g 100 g-1 0.005 Be, mg kg-1 <0.5
Total Kjeldahl nitrogen, g l-1 23-38 Na, g 100 g-1 0.28 Bi, mg kg-1 <0.5
Crude protein, % in VS 30-37 P, g 100 g-1 0.013 B, mg kg-1 2.39
pH 5.0-5.6 S, g 100 g-1 0.176 Cd, mg kg-1 <0.1
Chemical oxygen demand (COD), g l-1 395-582 Co, mg kg-1 <0.5
Carbon, g l-1 158-203 Cr, mg kg-1 <0.1
C/N ratio 5.9-6.0 Cu, mg kg-1 0.41
Acetic acid, g l-1 15-20 Fe, mg kg-1 15.32
Propionic acid, g l-1 0.13-0.17 Li, mg kg-1 0.12
Iso butyric acid, g l-1 0.00 Mn, mg kg-1 9.75
Butiric acid, g l-1 0.06-0.20 Mo, mg kg-1 0.10
Iso valeric acid, g l-1 0.04-0.21 Ni, mg kg-1 0.66
Valeric acid, g l-1 0.00 Pb, mg kg-1 <0.1
Total volatile fatty acids (VFA), g l-1 16-20 Sb, mg kg-1 <0.5
Sr, mg kg-1 2.68
Ti, mg kg-1 <0.5
*Concentrated beet vinasse,
**Diluted beet vinasse.

AD is one of the most promising technologies to treat ethanol wastewater as the methane produced can be used as an energy source in ethanol production plants [65]. However, the use of vinasse for methane fermentation requires a co-substrate to be added due to the low C/N ratio (about 6) and low content of macro- and microelements (Table 4) [90]. One of the approaches to overcome this obstacle may be adding lignocellulosic biomass. To achieve maximum biogas production by fermentation, an optimal ratio of vinasse to lignocellulosic biomass has to be determined. An experimental facility project for biogas fermentation of complex substrates consisting of vinasse and lignocellulose biomass has been developed according to the proposal by the Institute of Food Biotechnology and Genomics, NAS of Ukraine for the company “Eco-Energy” (Sumska region, Ukraine). Sweet sorghum bagasse and vinasse are produced by the company “Eco-Energy” as by-products from bioethanol production. Sweet sorghum bagasse is gained after plant stem crushing to obtain sweet sorghum juice as a source of sugars for bioethanol production. Fermentation is expected to be performed under thermophilic conditions because the main substrate vinasse is obtained at an initial temperature of 70 °C. Input components are 500 t/day vinasse with about 11% DM and 30 t/day shredded sorghum bagasse with about 90% DM. The process of fermentation occurs in concrete continuously stirred tank reactors (CSTR) with recirculation of the microorganisms. The calculated output is 2 500 nm3/day biogas (for heat and electricity) and 510 t/day of digestate for crop fertilisation.

3. PROCESS DESIGN

3.1. Parameters of Anaerobic Fermentation

AD and biogas production depends on many important parameters (Table 5) including temperature, pH, substrate DM rate, Organic Dry Matter (ODM) rate, C/N ratio, Hydraulic Retention Time (HRT), and Organic Loading Rate (OLR) [12, 61].

Different species of methanogenic bacteria function optimally in peculiar temperature ranges: psychrophilic, mesophilic, and thermophilic [6]. Higher temperature significantly improves the microbial growth kinetics, enzymes secretion, substrate diffusion, and mixing but affects the gas solubility, influencing the sulfide and ammonia toxicity, especially to methanogens [12]. Although the thermophilic process is generally the most efficient, large-scale AD is frequently carried out under the mesophilic conditions which are much easier to control and require less energy for heating [6, 12]. Moreover, the thermophilic process needs to be well buffered as it has a higher VFA/alkalinity ratio [12].

The pH is one of the most important operational parameters due to a wide range of optimal pH for particular microbial groups in the AD process: 5.5-6.5 for hydrolysis and acidogenesis as well as 7.8-8.2 for methanogenesis, therefore, neutral pH 6.8-7.4 is fitted for mixed culture if the whole process is performed in one digester [12].

Table 5. Some of the optimal parameters for AD [6, 12, 61 with modifications].
Parameters Optimal Range
Temperature, °C Mesophilic: 30-42
Thermophilic: 48-55
pH 6.8-7.4
C:N ratio 10-40
Total solids Liquid-state: <15%
Solid-state: 15-40%
Solids retention time (SRT) to hydraulic retention time (HRT) ratio » 1
Total VFA (mg/l as acetic acid) 50-250
Acetic acid (mg/l) < 1000
Propionic acid (mg/l) < 250
COD to nitrogen to phosphorus 350:7:1

Retention Time (RT) is the duration for the substrate and microorganisms to be kept together in a digester to achieve the desired extent of degradation [6]. Accordingly, HRT (or substrate retention time) is the time that an organic material stays in a digester from the moment it is added into the digester to the time of its evacuation [6]. In practice, HRT may last from a few hours in case of easily degradable soluble wastes up to several months in case of energy crop digestion [34]. For the efficient anaerobic fermentation, solid (microorganisms) retention time to HRT ratio should be more than 1 [12]. The shorter SRT the smaller would be the size of the reactor which accounts for 70-80% of the process total cost, and microorganism retention time, on the contrary, should be maximized [6]. In reactor configurations with biomass retention/recycling, the time microbes are retained in the bioreactors is much longer than the time a soluble substrate was kept resulting in a low substrate retention time without biomass washout [12].

RT and HRT are tightly connected with the OLR, the amount of ODM to be injected in the reactor. Substrate properties such as concentration and degradability, milieu parameters (e.g., temperature, pH), and the reactor performance (configuration, mass transfer capability, scum and bottom layer formation, etc.) determine the maximum allowable loading rate [34]. Depending on the influential factors listed, volumetric loadings for the same substrate can vary in the range between 5-40 gI-1d-1 VS [34]. It is important to avoid overloading or inadequate mixing of substrates which can cause a significant rise in VFA concentration, a sharp drop in pH and system failure [6, 12]. This is the reason for the concentration of total VFA under control (Table 5).

A properly balanced nutrient composition must be provided in the substrate for stable fermentation [12, 34]. The performance of digesters fed with nutrient-deficient substrates such as lignocellulosic feedstock can be greatly improved by co-digestion with nutrient-rich substrates such as food waste or animal manure [12]. The carbon to nitrogen ratio is one of the crucial substrate properties in AD. The high C/N ratio results in VFA accumulation [65], besides, the nitrogen is consumed rapidly by the methanogens to meet their protein requirements and is no longer available to react on the left-over carbon content in the material, and both circumstances may inhibit biogas production [6]. If the C/N ratio is too low, nitrogen is liberated and accumulates in the form of ammonia/ammonium which consequently increases the pH of the material and inhibits AD as well [6, 104]. Hence, a higher C/N ratio leads to a higher methane production but it lowers buffer capacity, while a low C/N ratio decreases methane production, increases the buffer capacity. To balance the C/N a correlation co-digestion strategy can be applied [104]. In addition, supplementing trace elements, particularly iron, nickel, cobalt, molybdenum, selenium, magnesium, zinc, manganese has been shown to have a positive effect on the stability of the AD process and methane production [12].

Inhibiting or toxic components of the substrate can cause retarded methane formation, a decrease of the methane content in biogas or even complete failure of methanogenesis [34]. Inhibition has been reported to occur from long-chain fatty acids such as oleate and stearate, antibiotics, phenols, organic solvents, e.g., chloroform, and higher levels of heavy metals [6, 34]. However, gradual adaptation to increased levels of inhibitory substances or complete degradation/detoxification can be observed for some toxic components such as pentachlorphenol, nitroaromatic compounds, chlorinated aliphatic or aromatic hydrocarbons, and azo dyes [34].

Anaerobic microorganisms can also be inhibited by metabolic by-products generated during the fermentation, e.g., hydrogen, ammonia, sulphide, and VFA [34, 105]. The extensive review indicates [34] that maintenance of a low hydrogen partial pressure (1-10 Pa) regulates the degradation of propionate and butyrate. Besides, it also allows the acetate-utilizing methanogens to sustain the pH by conversion of acetic acid to methane and CO2. The increased partial pressure of hydrogen results in the accumulation of intermediate organic metabolites with subsequent pH drop below 6, ceasing methane generation [34]. Meanwhile, a competition for the available hydrogen can occur during methanogenesis, and sulphate-reducing bacteria obtain hydrogen and acetate more easily than methane-forming bacteria under low-acetate concentrations which increase sulphide levels and inhibit all reaction stages [34].

The destruction of organic matter, primarily the proteins [5, 34, 105] but also nitrates [34], releases ammonia nitrogen. As do sulphate reducers, nitrate-reducing bacteria compete successfully for the hydrogen normally used for CO2 reduction to methane, subsequently, substrates with high protein or nitrate contents may suppress methane formation and cause considerable ammonia toxicity during AD [34]. Increasing pH and temperature will lead to an increased fraction of free ammonia [5] that can penetrate the cell membrane [105]. Methanogenic bacteria are especially sensitive to the unionized molecules of ammonia [5, 105], sulphide, and VFA [105]. Some process parameters, such as temperature, retention time inside the digester, pH, etc., have a direct or indirect impact on the sanitation efficiency of the AD process [5]. However, there are feedstock types which require separate pre-sanitation process (pasteurization or pressure sterilization), e.g. wastewaters from slaughterhouses, food and catering wastes and flotation sludge [5].

The main target product of biogas production is methane; any other gasses contained in biogas are unwanted and are considered as biogas pollutants [103, 106]. Such components reduce the density, calorific value, and Wobbe index of biogas [106]. H2S and NH3 components in biogas are toxic and extremely corrosive, damaging the combined heat and power (CHP) unit and metal parts via emission of SO2 from combustion [106]. The relative content of CH4 and CO2 in biogas mainly depends on the nature of the substrate and pH of the reactor, N2 appears from the dissolved air in the substrate, water vapours come from substrates at thermophilic temperatures, hydrogen sulfide recovers from substrate sulfates, and ammonia originates from the degradation of nitrogen-containing compounds such as protein, urea, and uric acid [103, 106]. To remove unwanted compounds, various biogas upgrading methods are commercialized; the major ones are water scrubbing, chemical adsorption, pressure swing absorption, membrane and cryogenic separation [107].

3.2. Substrate Utilization

The composition and digestibility of substrates are the most important parameters in methane yield [61]. It is determining for the structure and the composition of biogas substrates that an increasing amount of lignin is deposited into the cell walls in the process of plant crop growth to ensure their stability [30]. Lignin is a strongly cross-linked hydrophobic three-dimensional polymer consisting of three primarily monolignols (p-coumaryl, coniferyl, and sinapyl alcohols) with amorphous structure resistant to microbial degradation [30, 108, 109]. The lignin content and composition varies among species, phylogenetic groups, cell types, and developmental stages of plants [109]. Most studies on specific methane yield prediction provide linear or non-linear models across crops with lignin content as major regressor variable [36].

Cellulose is a fibrous water-insoluble linear polysaccharide, a homopolymer of glucose joined by β-1,4 linkages [110]. Hemicelluloses are branched polysaccharides composed of pentoses (arabinose, xylose), hexoses (galactose, glucose, mannose) and acetylated sugars that serve as cement compounds between lignin and cellulose fibers in the united cell structure to form lignocellulosic complex [30, 108]. Hemicelluloses in agricultural biomass like straw and grasses are composed mainly of xylan that can be extracted easily in an acidic or alkaline milieu, whilst softwood hemicelluloses contain mainly glucomannan which requires a stronger alkaline milieu for extraction [108]. Since hemicellulose, unlike cellulose, has a lower molecular weight, is not crystalline but highly branched and amorphous, it has hydrophilic properties and is more easily accessible to hydrolytic enzymes for microbiological degradation than cellulose and lignin [30, 108].

Due to the strong integration of lignin, an increase of lignin content makes the lignocellulosic complex more resistant to biochemical degradation, and hydrolysis is the limiting step in methane fermentation of lignocellulose [30]. Since plant biomass contains in general 40-50% cellulose, 20-40% hemicellulose, and 20-30% lignin in DM, consequently, its characteristics such as lignin content, cellulose accessibility to cellulase, and cellulose crystallinity to a large extent determine the overall digestibility of the plant feedstock [108]. Although hemicelluloses, being lignocellulosic components, are highly thermo-chemically sensitive, severity parameters must be carefully optimized to avoid the formation of hemicellulose decay products such as furfurals and hydroxymethyl furfurals, which have been reported to inhibit the microbiological fermentation process. Such inhibition is more pronounced in aerobic conditions than in anaerobic [108, 111, 112]. In the fermentation of lignocellulosic hydrolysates, phenolic compounds have also been suggested to exert a considerable inhibitory effect with low molecular weight compounds being the most toxic [112]. At the same time, the inhibition of the third phase of anaerobic fermentation, acetogenesis, in lignocellulosic substrates is rather unlikely to happen due to the slow-running previous phases of hydrolysis and acidogenesis which prevent the accumulation of organic acids [30].

Pectins, proteins and the low-structure carbohydrates such as sugar and starch can be easily attacked by microorganisms and decomposed relatively quickly [30]. The overall scheme of organic constituents’ anaerobic degradability is illustrated in Fig. (2).

If the elemental composition of a substrate is known, the theoretical biogas yield can be calculated on the basis of the stoichiometric reaction. In methane fermentation of glucose the formula will be as follows [34]:


C6H12O6 = 3 CH4 + 3 CO2

As a result, under standard conditions, 1 mole of the carbohydrate glucose gives 3 moles of methane and 3 moles of carbon dioxide, or 134.4 l biogas out of 180 g glucose (0.747 l/g) [34]. Similarly, the theoretical biogas yield from lipids and proteins will be 1.25 l/g (32% CO2 + 68% CH4) and 0.7 l/g (29% CO2 and 71% CH4) correspondingly [34].

Theoretical expectations that oil plants, due to the high content of lipids, should attain particularly high specific methane yields, are not supported by empirical studies [113]. For instance, oil crop sunflower (Helianthus annuus L.) produced substantially lower specific methane yields than maize [113]. It is known [34, 114] that long-chain fatty acids and higher oil concentrations can inhibit the anaerobic fermentation, though as shown in the study [115], in some cases adding a small amount of oil may significantly increase biogas yield.

A plant biomass-based renewable energy research has recently turned towards the investigation of quick and reliable valuation methods to determine the substrate quality of plant biomass for biogas processing which enables biogas plant owners to optimize the substrate production and purchase [36]. A laboratory procedure has been invented at the University of Hohenheim to determine the quantity and quality of biogas, e.g., methane gained as a result of an organic break-down of substrate samples less than 5 g of dry biomass in a batch process [116].

3.3. Biomass Treatment

The substrate quality of plant biomass for biogas processing widely varies not only depending on the plant species but also concerning management practices [32, 36]. Biomass treatment of plant crops for biogas production consists of cultivation, harvesting, transportation, storage, pretreatment, configuration/control of the anaerobic process, treatment, storage and use of digestate [29, 117].

The time of crop harvest can influence the composition of the ingredients regarding the methane yield [29, 30]. In the case of grasses, late harvest leads to higher lignin content causing slowing down and decreasing methane yield [29]. Although Miscanthus × giganteus cultivated for combustion purposes is harvested after winter when lignin and DM contents are high, for biogas plants and improved digestibility it is necessary to harvest miscanthus green, before winter [118]. The silage quality is better when miscanthus is harvested in mid-October due to the highest lactic acid content (average: 3.0% of DM) and the lowest pH (average: 4.39) compared to the harvests in mid-September and beginning of October [119]. On the contrary, late hybrids of maize, compared to medium-early hybrids, attained the highest specific methane yield and maximum methane hectare yields at the final harvest date taking full advantage of the growing season and providing higher whole-plant DM concentration [113]. Consequently, maize for biogas is recommended to harvest later than the forage maize.

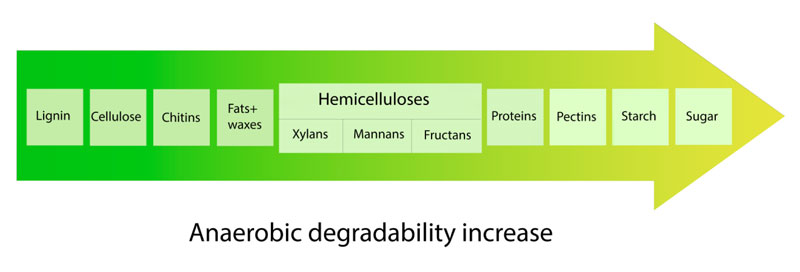

Fig. (2). Anaerobic degradability of organic constituents of biogas substrates [30].

Biomass storage serves to compensate for the seasonal fluctuations of feedstock supply and to facilitate mixing different co-substrates for non-interrupted uploading to the digester [5]. Solid feedstock can be stored as shown in Fig. (3) in large heaps on the ground or in bunker silos and require pressing by tractor or covering to minimize aerobic reactions and undesired gas emissions [5, 120].

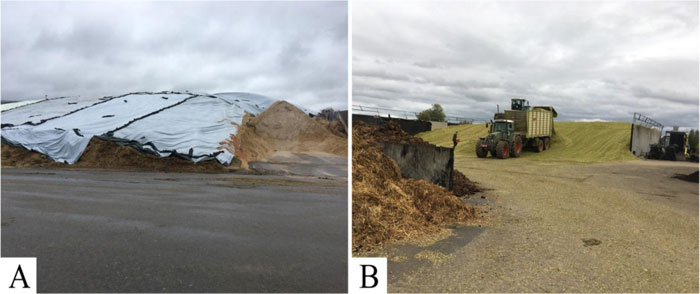

Fig. (3). Biogas plant residue feedstock stored in a covered heap on the ground (A) and pressed by tractor in concrete bunker silo (B).

According to the general principle of organization of protective measures in biogas technology, which states that the formation of hazardous gases outside the feeding system must be minimized, mixing of substrates outside closed tanks should be avoided to prevent chemical reactions and formation of hazardous gases, such as hydrogen sulfide, carbon dioxide or ammonia [103].

3.3.1. Pretreatment Strategies

Some substrates contain chemicals that inhibit the growth and activity of the microorganisms or create physical obstacles like floating, foaming or clumping, block impellors and pipes in biogas plants. The molecular structure of other chemicals is poorly accessible to microorganisms and their enzymes, for instance, because of their highly crystalline structure or low surface area [121]. However, the major drawback in AD is the lengthy process due to its distinct sequential steps (hydrolysis, acidogenesis, acetogenesis, and methanogenesis). The hydrolysis is the most rate-limiting factor for the entire process [104]. To make the AD fast and efficient for an extended variety of substrates various pretreatment technologies have been developed: physical (mechanical, thermal, ultrasound, electrochemical), chemical (alkali, acid, oxidative), biological (microbiological, enzymatic), and combined processes (steam explosion, extrusion, thermochemical) [121].

Mechanical pretreatment makes pieces of substrate smaller or squeezes them to open the cellular structure, increasing the contact surface area of the biomass, reduces viscosity and floating layers appearing in digesters [121]. The optimal particle size depends on the substrate composition and parameters of digestion. In a study [122], methane yields from barley straw increased between 19.2% and 54.2% due to the particle size reduction from 5.0 to 0.5 cm; in case of wheat straw, reducing the size to 5.0 cm and 0.2 cm rose the methane yield from 56.6% to 83.5%; rice straw and maize stalks did not show any significant methane yield improvement after mechanical pre-treatment.

As lignin undergoes no hydrolysis under anaerobic conditions, and cellulose/hemicellulose hydrolysis goes very long, pretreatment technologies have been developed to enhance biogas production from lignocellulosic materials [61, 123]. Thus, the digestibility of reed (Poales) biomass improved remarkably after the steam explosion at 200 °C for 15 min, and consequently, the specific methane yield increased up to 89% [124]. Likewise, a steam explosion at 220 °C for 1 min resulted in 20% higher methane production compared to non-treated wheat straw. However, the more severe treatment decreased biodegradability possibly due to the formation of inhibitory compounds [123]. Thermal pretreatment at different temperatures was applied to influence anaerobic digestibility of hazelnut shells and wastes, and it was found [61] that thermal pretreatment at 60 °C resulted in the highest biogas yield.

Wood wastes and residues comprise almost 50% of a tree converted into the final products and include residues from tree felling and processing as well as discarded furniture and building materials [125]. Nevertheless, a high carbon-to-nitrogen ratio and high crystalline cellulosic structure reduce biogas yield efficiency from wood leftovers [126]. It was shown [125] that thermo-chemical NaOH pretreatment of eucalyptus wood chips increased methane yield by 38.5% compared to untreated chips. The disadvantages of thermo-chemical pretreatment are a large amount of chemical reagent needed, the necessity of pH adjustment together with costly maintenance of thermal conditions [127]. A new thermochemical pretreatment of corn in the stove and by a low-temperature fast pyrolysis with a carrier gas flow rate at 4 and 3 m3/hour enhanced methane production by 18.07% and 18.33% respectively [127].

In a study [128], biological pretreatment with complex microbial agents was used to pretreat corn straw at a temperature of about 20 °C to improve biodegradability and biogas production. The microbial complex included yeasts (Saccharomyces cerevisiae Meyen ex E.C. Hansen, Coccidioidesimmitis sp., and Hansenula anomala (E.C.Hansen) Syd. & P.Syd.), cellulolytic bacteria (Bacillus licheniformis (Weigmann, 1898) Chester, 1901, Pseudomonas sp., and Bacillus subtilis (Ehrenberg, 1835) Cohn, 1872) and fungus Pleurotus florida (Mont.) Singer together with the lactic acid bacteria of Lactobacillus deiliehii sp. The pretreatment lasted for 15 days and resulted in 33.07% more total biogas yield, 75.57% more methane yield [128].

3.3.2. Two-stage Digestion Approach

The AD can be conducted in two separate phases: acidogenesis (producing VFA) and methanogenesis (producing methane and carbon dioxide) [104, 129]. Phase separation can increase specific bioenergy production, substrate degradation rate, improve the process stability and reduce retention time due to maintaining optimal conditions for different microbial populations working in two phases with distinct nutrient, pH, and other requirements [104, 129, 130]. Also, operating of the reactor system in the AD of rye silage and barley straw mixture at different temperature regimes, thermophilic hydrolysis/acidogenesis phase and mesophilic methanization, increased the methane fraction in the biogas to 85% [130]. To obtain high calorific value biogas (77% of methane) in anaerobic fermentation of maize silage and a mixture of grass and maize silage, an increased pressure up to 9 bar on the second stage bioreactor was applied [129].

3.4. Anaerobic Digesters Design

There are multiple types of biogas digesters operating in the world: made of concrete, steel, brick or plastic, shaped like silos, troughs, basins or ponds, placed underground or on the surface [5]. The DM content of the digested substrate determines the design of a biogas plant and the type of digestion [5].

Historically, research on high-solids anaerobic fermentation was focused on the single charge (batch), non-mixed reactor concept, with recirculation of the effluent [6]. In non-mixed systems, the rate of gas production is much slower than in mixed systems, but this technology allows treating solid wastes in larger quantities and saving water [6]. An example of batch digesters is a “garage type” made of concrete, for the treatment of source separated biowaste from households, grass cuttings, and energy crops with 15-40% (TS) [5]. Instead of mechanical mixing, the leachate collected at the bottom of the reactor is either recirculated back to the top of the reactor or mixed with a fresh substrate prior to feeding into the reactor [12]. The temperature of the process and of percolation liquid is regulated by a built-in floor heating system and by a heat exchanger, a reservoir for the liquid [5].

Suspended growth anaerobic reactor includes CSTR, up-flow of anaerobic sludge blanket digesters, anaerobic contact reactors, anaerobic sequencing batch reactors, and anaerobic baffled reactors [12]. Due to simple design and operation as well as the ability to be fed with diverse feedstocks at various total solids content, CSTR is the most common reactor design for currently working biogas plants [12, 131].

Mixing is required for the most anaerobic reactor designs to combine the incoming material with the bacteria, to maintain pH of the fluid, temperature, and nutrients homogeneity, to facilitate the up-flow of gas bubbles as well as to prevent the formation of swimming layers and sediments [5, 6]. If the rate-limiting step throughout the startup duration is methanogenesis vigorous mixing is viewed [121] to be counterproductive, whereas high mixing is recommended if the rate-limiting step is hydrolysis. Stirring is applied using mechanical, hydraulic or pneumatic equipment [5].

To eliminate biomass stratification and inhomogeneity, the rotary digester concept was introduced [132-134]. In the rotating digester, substrate mixing is performed by raising the mineral component of biomass and methane-forming bacteria accumulating in the lower part of the digester and immersing the organic component accumulating in the upper part [133]. The digester is designed as a horizontal cylinder rotating around a horizontal axis, partially immersed in the liquid of the outer casing [132, 134].

Attached growth anaerobic reactor allows microorganisms to attach on to diversified inert media with high specific surface area and design for treating low total solids (< 5%) containing wastewaters [12]. The variants of this configuration include an anaerobic filter, expanded bed reactor, and fluidized bed reactor [12].

Large farm-scale co-digestion plants usually consist of several digester tanks, including one or several main digesters and post digesters [5]. The storage tanks for digestate serve also as post-digesters and should be covered with a gas-tight membrane [5].

CONCLUSION

AD is a widely explored and promising technology that can utilize a broad range of plant substrates. From 2009 to 2018, global biogas capacities have more than doubled and continue to grow nowadays. Germany and the USA are the largest biogas manufacturers whereas Asian countries are the leaders in the number of smaller biogas digesters. Methane fermentation occurs in nature and in the process of the organic matter decay in an oxygen-deprived milieu. To avoid GHG released into the atmosphere, biogas collecting facilities should be located within the closest possible vicinity to the existing garbage dumps. Waste management practice involving organic fraction separation in households and in the industry should be applied.

Plant feedstock including energy crops, agricultural residues, and industrial wastes, may play a decisive role in the production of biogas as a renewable energy source. Energy crops due to high yields, low nutrient and water requirements as well as low establishment costs can be cultivated on marginal lands thus eliminating controversies between DEC and food crops. The introduction of crop rotation systems for DEC cultivation can be advantageous for effective land use. It may also be beneficial to co-digest energy crops and lignocellulosic agricultural residues with wastes to maintain the nutrient composition, particularly C/N ratio. Vinasse (molasses stillage) is the main residue (by-product) of alcohol production generated in large volumes. The AD of vinasse can be improved by mixing it with a co-substrate with a higher C/N ratio and macro-/microelement content.

The most important parameters of AD and biogas production include temperature, pH, substrate DM rate, ODM rate, C/N ratio, HRT, and OLR. The composition, digestibility and biomass pretreatment of plant feedstock influence the yield of methane. Construction of biogas facilities is beneficial for environmental, economic, and social reasons.

LIST OF ABBREVIATIONS

BEE  = Biomass Energy Europe International Project
BIOPLAT-EU  = Promoting Sustainable use of Underutilized Lands for Bioenergy Production Through a Web-based Platform for Europe Horizon2020 EU Project
Bcm  = Billion Cubic Meters
COD  = Chemical Oxygen Demand
CSTR  = Continuously Stirred Tank Reactor
DEC  = Dedicated Energy Crops
DM  = Dry Matter
FORBIO  = ‘Sustainable Bioenergy Production Potential on Available Underutilized Lands in Europe Horizon2020 EU Project
FP7  = 7th Framework European Research Funding Programme
GHG  = Greenhouse Gas
HRT  = Hydraulic (Substrate) Retention Time
MAGIC  = Marginal Lands for Growing Industrial Crops Horizon2020 EU Project
MISCOMAR  = Miscanthus Biomass Options for Contaminated and Marginal Land: Quality, Quantity and Soil Interactions International Project
New-C-Land  = Developing Marginal Land by Producing Plant Biomass used for Energy and Materials International Project
oDM  = Organic Dry Matter
OPTIMA  = Optimization of Perennial Grasses for Biomass Production International Project
OLR  = Organic Loading Rate
RT  = Retention Time
SEEMLA  = Sustainable Exploitation of Biomass for Bioenergy from Marginal Lands Horizon2020 EU Project
SRT  = Solids (Microorganisms) Retention Time
TS  = Total Solids
VFA  = Volatile Fatty Acids
VS  = Volatile Solids
WATBIO  = Developing Drought-tolerant Biomass Crops for Europe International Project

CONSENT FOR PUBLICATION

Not applicable.

FUNDING

This work was supported by the National Academy of Sciences of Ukraine (partially in the project No. 0118U005321 and partially in the project No. 0119U101434). T.S. Ivanova appreciates the funding received from the U.S.-Ukraine Foundation Biotechnology Initiative to participate “proBIOGAS International – Biogas engineering and operating training with plant visits” in Stuttgart and Southern Germany (September 24th – October 2nd, 2019), which was organized by the International Biogas and Bioenergy Centre of Competence Fachgruppe Biogas GmbH and the State Institute of Agricultural Engineering and Bioenergy, University of Hohenheim, Germany.

CONFLICT OF INTEREST

The authors declare no conflict of interest, financial or otherwise.

ACKNOWLEDGEMENTS

We acknowledge the suggestions of Dr. V. Kyrylenko (Institute of Food Biotechnology and Genomics, National Academy of Sciences of Ukraine, Kyiv) aimed to improve the language of the manuscript.

REFERENCES

[1] Abderezzak B. An innovative simulation tool for waste to energy generation opportunities. Med J Model Simul 2017; 7: 38-47.
[2] Abderezzak B, Khelidj B, Kellaci A, Tahar Abbes M. The smart use of biogas: Decision support tool. AASRI Procedia 2012; 2: 156-62.
[3] Walekhwa PN, Mugisha J, Drake L. Biogas energy from family-sized digesters in Uganda: Critical factors and policy implications. Energy Policy 2009; 37: 2754-62.
[4] Nevzorova T, Kutcherov V. Barriers to the wider implementation of biogas as a source of energy: A state-of-the-art review. Energy Strateg Rev 2019; 26100414
[5] Seadi T, Rutz D, Prassl H, Köttner M, Finsterwalder T, Volk S, Eds. Biogas handbook 2008.
[6] Abbasi T, Tauseef SM, Abbasi SA. Biogas Energy Springer Briefs in Environmental Science 2012; 169.
[7] Katinas V, Marciukaitis M, Perednis E, Dzenajaviciene EF. Analysis of biodegradable waste use for energy generation in Lithuania. Renew Sustain Energy Rev 2019; 101: 559-67.
[8] Ingrao C, Faccilongo N, Di Gioia L, Messineo A. Food waste recovery into energy in a circular economy perspective: A comprehensive review of aspects related to plant operation and environmental assessment. J Clean Prod 2018; 184: 869-92.
[9] Cucchiella F, D’Adamo I, Gastaldi M. Sustainable Italian cities: the added value of biomethane from organic waste. Appl Sci (Basel) 2019; 2221
[10] Ionel I, Cioablă AE. Biogas production based on agricultural residues. From history to results and perspectives. WSEAS Trans Environ Dev 2010; 6(8): 591-603.
[11] Lebuhn M, Munk B, Effenberger M. Agricultural biogas production in Germany – from practice to microbiology basics. Energy Sustain Soc 2014; 4
[12] Nguyen D, Nitayavardhana S, Sawatdeenarunat Ch, Surendra KC, Khanal SK. Biogas production by anaerobic digestion: Status and perspectives Biomass, Biofuels, Biochemicals 2019; 763-78.
[13] Whiteman A, Esparrago J, Elsayed S, Rueda S, Arkhipova I, Escamilla G. IRENA, Renewable Energy Statistics 2019 2019; 382.
[14] Chasnyk O, Solowski G, Shkarupa O. Historical, technical and economic aspects of biogas development: Case of Poland and Ukraine. Renew Sustain Energy Rev 2015; 52: 227-39.
[15] Balaman SY. Introduction to biomass – Resources, production, harvesting, collection, and storage Decision-making for biomass-based production chains: The basic concepts and methodologies 2019; 1-23.
[16] Nuamah A, Malmgren A, Riley G, Lester E. Biomass Co-Firing Comprehensive Renewable Energy 2012; 55-73.
[17] Lambert M. A significant contribution to decarbonizing gas markets 2017.https://www.oxfordenergy.org/publications/biogas-significant-contribution-decarbonising-gas-markets/?v=3943d8795e03#_ftnref1
[18] Nabel M, Temperton VM, Poorter H, Lücke A, Jablonowski ND. Energizing marginal soils – the establishment of the energy crop Sida hermaphrodita as dependent on digestate fertilization, NPK, and legume intercropping. Biomass Bioenergy 2016; 87: 9-16.
[19] Schröder P, Herzig R, Bojinov B, et al. Bioenergy to save the world. Producing novel energy plants for growth on abandoned land. Environ Sci Pollut Res Int 2008; 15(3): 196-204.
[20] Bosco S, Di Nasso NN, Roncucci N, Mazzoncini M, Bonari E. Environmental performances of giant reed (Arundo donax L.) cultivated in fertile and marginal lands: a case study in the Mediterranean. Eur J Agron 2016; 78: 20-31.
[21] Calderon C, Colla M, Jossart J-M, Hemeleers N, Martin A, Aveni N, et al. Statistical report: Biogas 2019 2019; 18.
[22] Chiumenti A, Boscaro D, Borso F, Sartori L, Pezzuolo A. Biogas from fresh spring and summer grass: Effect of the harvesting period. Energies 2018; 11(1466)
[23] D’Imporzano G, Pilu R, Corno L, Adani F. Arundo donax L. can substitute traditional energy crops for more efficient, environmentally-friendly production of biogas: A Life Cycle Assessment approach. Bioresour Technol 2018; 267: 249-56.
[24] Amon T, Amon B, Kryvoruchko V, et al. Methane production through anaerobic digestion of various energy crops grown in sustainable crop rotations. Bioresour Technol 2007; 98(17): 3204-12.
[25] Seppälä M, Paavola T, Lehtomäki A, Rintala J. Biogas production from boreal herbaceous grasses--specific methane yield and methane yield per hectare. Bioresour Technol 2009; 100(12): 2952-8.
[26] Schievano A, D’Imporzano G, Orzi V, Colombo G, Maggiore T, Adani F. Biogas from dedicated energy crops in Northern Italy: Electric energy generation costs. Glob Change Biol Bioenergy 2015; 7
[27] Sieling K, Herrmann A, Wienforth B, et al. Biogas cropping systems: Short term response of yield performance and N use efficiency to biogas residue application. Eur J Agron 2013; 47: 44-54.
[28] Mast B, Lemmer A, Oechsner H, Reinhardt-Hanisch A, Claupein W, Graeff-Hönninger S. Methane yield potential of novel perennial biogas crops influenced by harvest date. Ind Crops Prod 2014; 58: 194-203.
[29] Murphy J, Braun R, Weiland P, Wellinger A. Biogas from crop digestion 2011; 23.
[30] Kälber S, Leible L, Kappler G, Domnik T. Grass from landscaping measures in biogas production – A systems analytical approach. 25th European Biomass Conference and Exhibition Stockholm, Sweden. June 12-15, 2017;
[31] Wannasek L, Ortner M, Amon B, Amon Th. Sorghum, a sustainable feedstock for biogas production? Impact of climate, variety and harvesting time on maturity and biomass yield. Biomass Bioenergy 2017; 106: 137-45.
[32] Hübner M, Oechsner H, Koch S, Seggl A, Hrenn H, Schmiedchen B, et al. Impact of genotype, harvest time and chemical composition on the methane yield of winter rye for biogas production. Biomass Bioenergy 2011; 35(10): 4316-23.
[33] Schulz VS, Munz S, Stolzenburg K, Hartung J, Weisenburger S, Mastel K, et al. Biomass and biogas yield of maize (Zea mays L.) grown under artificial shading. Agriculture 2018; 8(178)
[34] Braun R. Anaerobic digestion – A multi-faceted process for energy, environmental management and rural development Improvement of crop plants for industrial end uses 2007; 335-416.
[35] Hutňan M, Špalková V, Bodík I, Kolesárová N, Lazor M. Biogas production from maize grains and maize silage. Pol J Environ Stud 2010; 19(2): 323-9.
[36] Cossel M, Möhring J, Kiesel A, Lewandowski I. Optimization of specific methane yield prediction models for biogas crops based on lignocellulosic components using non-linear and crop-specific configurations. Ind Crops Prod 2018; 120: 330-42.
[37] Thilakarathna MS, Raizada MN. A review of nutrient management studies involving finger millet in the semi-arid tropics of Asia and Africa. Agronomy (Basel) 2015; 5: 262-90.
[38] Fiener P, Auerswald K. Rotation effects of potato, maize, and winter wheat on soil erosion by water. Soil Sci Soc Am J 2007; 71: 1919-25.
[39] Svoboda N, Taube F, Kluß C, Wienforth B, Kage H, Ohl S, et al. Crop production for biogas and water protection – a trade off? Agric Ecosyst Environ 2013; 177: 36-47.
[40] Farre I, Faci JM. Comparative response of maize (Zea mays L.) and sorghum (Sorghum bicolor L. Moench) to deficit irrigation in a Mediterranean environment. Agric Water Manage 2006; 83: 135-43.
[41] Deuker A, Stinner W, Rensberg N, Wagner L, Hummer HE. Regional risks for biogas production in Germany by maize pest Diabrotica v. virgifera? J Agric Sci Technol 2012; 2: 749-64.
[42] Pulighe G, Bonati G, Fabiani S, et al. Assessment of the agronomic feasibility of bioenergy crop cultivation on marginal and polluted land: A GIS-based suitability study from the Sulcis Area, Italy. Energies 2016; 9: 895.
[43] Pulighe G, Bonati G, Colangeli M, et al. Ongoing and emerging issues for sustainable bioenergy production on marginal lands in the Mediterranean regions. Renew Sustain Energy Rev 2019; 103: 58-70.
[44] Cosentino SL, Scordia D, Sanzone E, Testa G, Copani V. Response of giant reed (Arundo donax L.) to nitrogen fertilization and soil water availability in semi-arid Mediterranean environment. Eur J Agron 2014; 60: 22-32.
[45] Fernando AL, Costa J, Barbosa B, Monti A, Rettenmaier N. Environmental impact assessment of perennial crops cultivation on marginal soils in the Mediterranean Region. Biomass Bioenergy 2017.
[46] Cossel M, Lewandowski I, Elbersen B, Staritsky I, Eupen M, Iqbal Y, et al. Marginal agricultural land low-input systems for biomass production. Energies 2019; 12(3123)
[47] Khawaja C, Janssen R, Rutz D, Bonati G, Budniok M, Buiting M. Promoting sustainable use of underutilised lands for bioenergy production through a web-based platform for Europe. 27th European Biomass Conference and Exhibition Lisbon, Portugal. May 27-30, 2019;
[48] Lakyda P, Geletukha G, Vasylyshyn R, Zhelezna T, Zibtsev S, Böttcher H. In: Lakyda PI, Ed. Energy potential of biomass in Ukraine 2011.
[49] Mergner R, Janssen R, Rutz D, et al. Fostering sustainable feedstock production for advanced biofuels on underutilized land in Europe. 25th European Biomass Conference and Exhibition Stockholm. June 12-15, 2017;
[50] Pidlisnyuk V, Erickson L, Stefanovska T, et al. Potential phytomanagement of military polluted sites and biomass production using biofuel crop miscanthus x giganteus. Environ Pollut 2019; 249: 330-7.
[51] Wagner M, Mangold A, Lask J, Petig E, Kiesel A, Lewandowski I. Economic and environmental performance of miscanthus cultivated on marginal land for biogas production. Glob Change Biol Bioenergy 2019; 11: 34-49.
[52] Krümpel J, George T, Gasston B, Francis G, Lemmer A. Suitability of Opuntia ficus-indica (L) Mill. and Euphorbia tirucalli L. as energy crops for anaerobic digestion. J Arid Environ 2020; 174104047
[53] Zegada-Lizarazu W, Monti A. Are we ready to cultivate sweet sorghum as a bioenergy feedstock? A review on field management practices. Biomass Bioenergy 2012; 40: 1-12.
[54] Zegada-Lizarazu W, Zatta A, Monti A. Water uptake efficiency and above and below ground biomass development of sweet sorghum and maize under different water regimes. Plant Soil 2012; 351: 47-60.
[55] Yan Y, Du Z, Zhang L, et al. Identification of parameters needed for optimal anaerobic co-digestion of chicken manure and corn stover. RSC Advances 2019; 9: 29609-18.
[56] Angelidaki I, Ellegaard L. Codigestion of manure and organic wastes in centralized biogas plants: status and future trends. Appl Biochem Biotechnol 2003; 109(1-3): 95-105.
[57] Wang G, Gavala HN, Skiadas IV, Ahring BK. Wet explosion of wheat straw and codigestion with swine manure: effect on the methane productivity. Waste Manag 2009; 29(11): 2830-5.
[58] Khanal SK, Tirta Nindhia TG, Nitayavardhana S. Biogas from wastes: Processes and applications Sustainable resource recovery and zero waste approaches 2019; 165-74.
[59] Panigrahi S, Sharma HB, Dubey BK. Anaerobic co-digestion of food waste with pretreated yard waste: A comparative study of methane production, kinetic modeling and energy balance. J Clean Prod 2020; 243118480
[60] Anukam A, Mahammadi A, Naqvi M. Granström. A review of the chemistry of anaerobic digestion: Methods of accelerating and optimizing process efficiency. Processes (Basel) 2019; 7: 504.
[61] Şenol H. Biogas potential of hazelnut shells and hazelnut wastes in Giresun City. Biotechnol Rep (Amst) 2019; 24e00361
[62] Kodag V, Kulkarni GS. A review: Biogas production from bakery waste. IJTSRD 2018; 2(3): 2333-7.
[63] Ivanova TS, Bisko NA, Krupodorova TA, Barshteyn VYu. Breadcrumb as a new substrate for Trametes versicolor and Schizophyllum commune submerged cultivation. Korean J Microbiol Biotechnol 2014; 42(1): 67-72.
[64] Dubrovskis V, Plume I. Biogas potential from damaged bread. 16th International Scientific Conference on Engineering for rural development Jelgava, Latvia. May 24-26, 2017;
[65] Sawatdeenarunat Ch, Wangnai Ch, Songkasiri W, et al. Biogas production from industrial effluents Biomass, biofuels, biochemicals 2019; 779-816.
[66] Parawira W, Kudita I, Nyandoroh M, Zvauya R. A study of industrial anaerobic treatment of opaque beer brewery wastewater in a tropical climate using a full-scale UASB reactor seeded with activated sludge. Process Biochem 2005; 40(2): 593-9.
[67] Shao X, Peng D, Teng Z, Ju X. Treatment of brewery wastewater using anaerobic sequencing batch reactor (ASBR). Bioresour Technol 2008; 99(8): 3182-6.
[68] Chen H, Chang S, Guo Q, Hong Y, Wu P. Brewery wastewater treatment using an anaerobic membrane bioreactor. Biochem Eng J 2016; 105: 321-31.
[69] Enitan AM, Adeyemo J, Swalaha FM, Bux F. Anaerobic digestion model to enhance treatment of brewery wastewater for biogas production using UASB reactor. Environ Model Assess 2015; 20(6): 673-85.
[70] Golub NB, Shchurskaya EA, Trotsenko MV. Anaerobic treatment of brewery wastewater with simultaneous hydrogen production. J Water Chem Technol 2014; 36(2): 90-6.
[71] Annachhatre AP, Amatya PL. UASB treatment of tapioca starch wastewater. J Environ Eng 2000; 126(12): 1149-52.
[72] Sun L, Wan S, Yu Z, Wang Y, Wang S. Anaerobic biological treatment of high strength cassava starch wastewater in a new type up-flow multistage anaerobic reactor. Bioresour Technol 2012; 104: 280-8.
[73] Thanwised P, Wirojanagud W, Reungsang A. Effect of hydraulic retention time on hydrogen production and chemical oxygen demand removal from tapioca wastewater using anaerobic mixed cultures in anaerobic baffled reactor (ABR). Int J Hydrogen Energy 2012; 37(20): 15503-10.
[74] Ananad V, Prabhu S. A review on biogas production from tapioca processing industry. Int J Curr Eng Sci Res 2007; 4(2): 67-70.
[75] Ahmed Y, Yaakob Z, Akhtar P, Sopian K. Production of biogas and performance evaluation of existing treatment processes in palm oil mill effluent (POME). Renew Sustain Energy Rev 2015; 42: 1260-78.
[76] Bakar SNHA, Hasan HA, Mohammad AW, Abdullah SRS, Haan TY, Ngteni R, et al. A review of moving-bed biofilm reactor technology for palm oil mill effluent treatment. J Clean Prod 2018; 171: 1532-45.
[77] Nasution MA, Wibawa DS, Ahamed T, Noguchi R. Comparative environmental impact evaluation of palm oil mill effluent treatment using a life cycle assessment approach: a case study based on composting and a combination for biogas technologies in North Sumatera of Indonesia. J Clean Prod 2018; 184: 1028-40.
[78] Ohimain EI, Izah SC. A review of biogas production from palm oil mill effluents using different configurations of bioreactors. Renew Sustain Energy Rev 2017; 70: 242-53.
[79] Irvan T, Trisakti B, Maulina S, Daimon H. Production of biogas from palm oil mill effluent: from laboratory scale to pilot scale. Rasayan J Chem 2018; 11: 378-85.
[80] Suksong W, Promnuan K, Thipmunee M, Mamimin C, Prasertsan P. Two-stage thermophilic fermentation and mesophilic methanogenic process for biohythane production from palm oil mill effluent with methanogenic effluent recirculation for pH control. Int J Hydrogen Energy 2016; 41(46): 21702-12.
[81] Chin MJ, Poh PE, Tey BT, Chan ES, Chin KL. Biogas from palm oil mill effluent (POME): opportunities and challenges from Malaysia’s perspective. Renew Sustain Energy Rev 2013; 26: 717-26.
[82] Choong YY, Chou KW, Norli I. Strategies for improving biogas production of palm oil mill effluent (POME) anaerobic digestion: a critical review. Renew Sustain Energy Rev 2018; 82: 2993-3006.
[83] Nurliyana M, H’ng P, Rasmina H, Kalsom MU, Chin K, Lee S, et al. Effect of C/N ratio in methane productivity and biodegradability during facultative co-digestion of palm oil mill effluent and empty fruit bunch. Ind Crops Prod 2015; 76: 409-15.
[84] Boonsawang P, Rerngnarong A, Tongurai C, Chaiprapat S. Effect of nitrogen and phosphorus on the performance of acidogenic and methanogenic reactors for treatment of biodiesel wastewater. Songklanakarin J Sci Technol 2014; 36(6): 643-9.
[85] Boonsawang P, Rerngnarong A, Tongurai C, Chaiprapat S. Effect of pH, OLR, and HRT on performance of acidogenic and methanogenic reactors for treatment of biodiesel wastewater. Desalination Water Treat 2015; 54(12): 3317-27.
[86] Tangkathitipong P, Intanoo P, Butpan J, Chavadej S. Separate production of hydrogen and methane from biodiesel wastewater with added glycerin by two-stage anaerobic sequencing batch reactors (ASBR). Renew Energy 2017; 113: 1077-85.
[87] Siles JA, Gutiérrez MC, Martín MA, Martín A. Physical-chemical and biomethanization treatments of wastewater from biodiesel manufacturing. Bioresour Technol 2011; 102(10): 6348-51.
[88] López González LM, Pereda Reyes I, Romero Romero O. Anaerobic co-digestion of sugarcane press mud with vinasse on methane yield. Waste Manag 2017; 68: 139-45.
[89] Moraes BS, Junqueira TL, Pavanello LG, Cavalett O, Mantelatto PE, Bonomi A, et al. Anaerobic digestion of vinasse from sugarcane biorefineries in Brazil from energy, environmental, and economic perspectives: Profit or expense? Appl Energy 2014; 113: 825-35.
[90] Moraes BS, Triolo JM, Lecona VP, Zaiat M, Sommer SG. Biogas production within the bioethanol production chain: Use of co-substrates for anaerobic digestion of sugar beet vinasse. Bioresour Technol 2015; 190: 227-34.
[91] Moraes BS, Zaiat M, Bonomi A. Anaerobic digestion of vinasse from sugarcane ethanol production in Brazil challenges and perspectives. Renew Sustain Energy Rev 2015; 44: 888-903.
[92] Moraes BS, Petersen SO, Zaiat M, Sommer SG, Triolo JM. Reduction in greenhouse gas emissions from vinasse through anaerobic digestion. Appl Energy 2017; 189: 21-30.
[93] Boncz MA, Formagini EL, Santos LdaS, Marques RD, Paulo PL. Application of urea dosing for alkalinity supply during anaerobic digestion of vinasse. Water Sci Technol 2012; 66(11): 2453-60.
[94] Belhadj S, Karouach F, El Bari H, Joute Y. The biogas production from mesophilic anaerobic digestion of vinasse. IOSR J Environm Sci, Toxicol. Food Technol 2013; 5(6): 72-7.
[95] Longati AA, Cavalett O, Cruz AJG. Life Cycle Assessment of vinasse biogas production in sugarcane biorefineries. Computer-Aided Chem Eng 2017; 40: 2017-22.
[96] Fuess LT, Zaiat M. Economics of anaerobic digestion for processing sugarcane vinasse: Applying sensitivity analysis to increase process profitability in diversified biogas applications. Process Saf Environ 2018; 115: 27-37.
[97] Fuess LT, Garcia ML, Zaiat M. Seasonal characterization of sugarcane vinasse: Assessing environmental impacts from fertirrigation and the bioenergy recovery potential through biodigestion. Sci Total Environ 2018; 634: 29-40.
[98] Janke L, Leite AF, Batista K, et al. Enhancing biogas production from vinasse in sugarcane biorefineries: Effects of urea and trace elements supplementation on process performance and stability. Bioresour Technol 2016; 217: 10-20.
[99] Mota VT, Santos FS, Amaral MCS. Two-stage anaerobic membrane bioreactor for the treatment of sugarcane vinasse: assessment on biological activity and filtration performance. Bioresour Technol 2013; 146: 494-503.
[100] De Paoli F, Bauer A, Leonhartsberger C, Amon B, Amon T. Utilization of by-products from ethanol production as substrate for biogas production. Bioresour Technol 2011; 102(11): 6621-4.
[101] Baez-Smith C. Anaerobic digestion of vinasse for the production of methane in the sugar cane distillery. SPRI Conference on Sugar Processing Aguas de Sao Pedro, Brazil. September 17-20, 2006;
[102] Tunes CR, de Morais PP, Franke Portella AC, De Souza Aguiar RW, da Silva ÁR, Bis DP, et al. Biogas production from anaerobic digestion of vinasse in upflow anaerobic sludge blanket reactor. Int J Curr Res 2016; 8(9): 38699-703.
[103] Bontempo G, Maciejczyk M, Wagner L, Findeisen C, Fischer M, Hofmann F, Eds. Biogas: Safety first! Guidelines for the safe use of biogas technology 2016.
[104] Maurya R, Tirkey SR, Rajapitamahuni S, Ghosh A, Mishra S. Recent advances and future prospective of biogas production Advances in Feedstock Conversion Technologies for Alternative Fuels and Bioproducts, Woodhead Publishing Series in Energy 2019; 159-78.
[105] Khanal SK. Anaerobic biotechnology for bioenergy production: Principles and applications 2008; 320.
[106] Angelidaki I, Treu L, Tsapekos P, et al. Biogas upgrading and utilization: Current status and perspectives. Biotechnol Adv 2018; 36(2): 452-66.
[107] Aryal N, Kvist T, Ammam F, Pant D, Ottosen LDM. An overview of microbial biogas enrichment. Bioresour Technol 2018; 264: 359-69.
[108] Agbor VB, Cicek N, Sparling R, Berlin A, Levin DB. Biomass pretreatment: fundamentals toward application. Biotechnol Adv 2011; 29(6): 675-85.
[109] Novo-Uzal E, Pomar F, Gómez Ros LV, Espiñeira JM, Ros Barceló A. In: Jacquot J-P, Gadal P, Eds. Evolutionary History of Lignins Advances in Botanical Research 2012; 309-50.
[110] Brigham Ch. Biopolymers: Biodrgradable alternatives to traditional plastics Green Chemistry: An Inclusive Approach 2018; 753-70.
[111] Palmqvist E, Hahn-Hägerdal B. Fermentation of lignocellulosic hydrolysates I: Inhibition and detoxification. Bioresour Technol 2000; 74: 17-24.
[112] Palmqvist E, Hahn-Hägerdal B. Fermentation of lignocellulosic hydrolysates II:Inhibitors and mechanisms of inhibition. Bioresour Technol 2000; 74: 25-33.
[113] Schittenhelm S. Chemical composition and methane yield of maize hybrids with contrasting maturity. Eur J Agron 2008; 29: 72-9.
[114] Golub N, Shynkarchuk M, Kozlovets O. Obtaining biogas during fermentation of fat-containing wastes of leather production. EEJET 2017; 6/10(90): 4-10.
[115] Polischuk VN, Titova LL, Shvorov SA, Gunchenko YA. Estimation of biogas yield and electricity output during cattle manure fermentation and adding vegetable oil sediment as a co-substrate. Problemele Energeticii Regionale 2019; 2(43): 117-32.
[116] Helffrich D, Lemmer A, Morar M, Oechsner H, Steingas H. Inventors; Laboratory fermentation process to determine quantity and quality of biogas arising from organic break-down in batch process. Germany patent DE 10227685A1 2004.
[117] Whittaker C, Shield I. Biomass harvesting, processing, storage, and transport Greenhouse gas balances of bioenergy systems 2018; 97-106.
[118] Mangold A, Lewandowski I, Möhring J, Clifton-Brown J, Krzyzak J, Mos M, et al. Harvest date and leaf: stem ratio determine methane hectare yield of miscanthus biomass. Glob Change Biol Bioenergy 2019; 11: 21-33.
[119] Mangold A, Lewandowski I, Hartung J, Kiesel A. Miscanthus for biogas production: Influence of harvest date and ensiling on digestibility and methane hectare yield. Glob Change Biol Bioenergy 2019; 11: 50-62.
[120] Paolini V, Petracchini F, Segreto M, Tomassetti L, Naja N, Cecinato A. Environmental impact of biogas: A short review of current knowledge J Environ Sci Health A Tox Hazard Subst Environ Eng 2018; 53(10): 899-906.
[121] Montgomery LF, Bochmann G, Eds. Pretreatment of feedstock for enhanced biogas production 2014; 24.
[122] Menardo S, Airoldi G, Balsari P. The effect of particle size and thermal pre-treatment on the methane yield of four agricultural by-products. Bioresour Technol 2012; 104: 708-14.
[123] Ferreira LC, Donoso-Bravo A, Nilsen PJ, Fdz-Polanco F, Pérez-Elvira SI. Influence of thermal pretreatment on the biochemical methane potential of wheat straw. Bioresour Technol 2013; 143: 251-7.
[124] Lizasoain J, Rincón M, Theuretzbacher F, et al. Biogas production from reed biomass: Effect of pretreatment using different steam explosion conditions. Biomass Bioenergy 2016; 95: 84-91.
[125] Li R, Tan W, Zhao X, et al. Evaluation on the methane production potential of wood waste pretreated with NaOH and Co-digested with pig manure. Catalysts 2019; 9(539)
[126] Paul S, Dutta A. Challenges and opportunities of lignocellulosic biomass for anaerobic digestion. Resour Conserv Recycling 2018; 130: 164-74.
[127] Wang F, Zhang D, Wu H, et al. Enhancing biogas production of corn stover by fast pyrolysis pretreatment. Bioresour Technol 2016; 218: 731-6.
[128] Zhong W, Zhang Z, Luo Y, Sun S, Qiao W, Xiao M. Effect of biological pretreatments in enhancing corn straw biogas production. Bioresour Technol 2011; 102(24): 11177-82.
[129] Lemmer A, Chen Y, Lindner J, et al. Influence of different substrates on the performance of a two-stage high pressure anaerobic digestion system. Bioresour Technol 2015; 178: 313-8.
[130] Schönberg M, Linke B. The influence of the temperature regime on the formation of methane in a two-phase anaerobic digestion process. Eng Life Sci 2012; 12(3): 279-86.
[131] Kress P, Nägele H-J, Oechsner H, Ruile S. Effect of agitation time on nutrient distribution in full-scale CSTR biogas digesters. Bioresour Technol 2018; 247: 1-6.
[132] Golub GA, Szalay K, Kukharets SM, Marus OA. Energy Efficiency of Rotary Digesters. Prog Agric Eng Sci 2017; 13: 35-49.
[133] Golub GA, Skydan OV, Kukharets SM, Marus OA. Substantiation of motion parameters of the substrate particles in the rotating digesters. INMATEH Agric Eng 2019; 57(1): 179-86.
[134] Kukharets S, Golub G, Szalay K, Marus O. Study of energy costs in process of biomass mixing in rotary digesters. 18th International Scientific Conference Engineering for Rural Development, Jelgava May 22-24, 2019;
